Wir bieten Ihnen ein breites Spektrum an Laseroptiken, genau für Ihre Anforderungen. Egal ob F-Theta-Objektive, Laserstrahlaufweiter, Laserfokussierlinsen oder Laserstrahlkombinierer: Bei uns finden Sie für jede Laseranwendung die ideale Optik mit der passenden Wellenlänge, insbesondere telezentrische Linsen, Teil- oder Vollquarzlinsen.
Sie haben noch nicht das richtige Lasersystem oder die passende Laser-Optik für Ihre Laseranwendung gefunden? Auf Wunsch fertigen wir auch kundenspezifische Laseroptiken für Sie an. Bitte kontaktieren Sie uns für Datenblätter, Zeichnungen oder weitere technische Informationen zu den aufgeführten Laseroptiken.

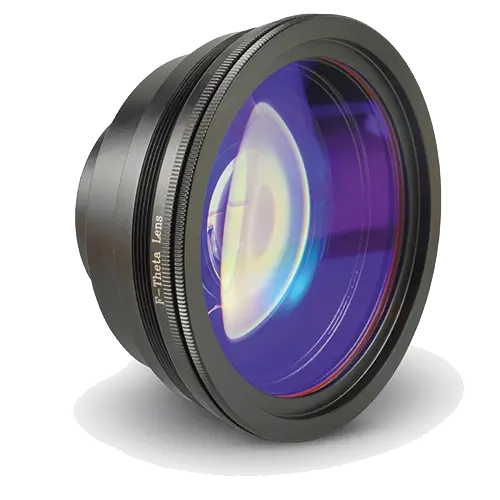

F-Theta Linse , verfügbar für alle Größen und Typen
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Gewinde | Telezentrisch | Datenblatt |
|---|---|---|---|---|---|---|---|---|---|
| SH-355-13-34-7 | 34 | 13×13 | ±25° | 7 | 4 | Quarzglas | M85X1 | Nein | |
| SH-355-50-63-7 | 63 | 50×50 | ±25° | 7 | 5.8 | Quarzglas | M85X1 | Nein | |
| SH-355-70-100-7 | 100 | 70×70 | ±25° | 7 | 10 | Quarzglas | M85X1 | Nein | |
| SHT-355-65-110-8 | 110 | 65×65 | ±25° | 8 | 11 | Quarzglas | M85X1 | Ja | |
| SH-355-100-160-8 | 160 | 100×100 | ±25° | 8 | 13 | Quarzglas | M85X1 | Nein | |
| SHT-355-100-160-8 | 160 | 100×100 | ±25° | 8 | 13 | Quarzglas | M85X1 | Ja | |
| SH-355-140-210-8 | 210 | 140×140 | ±25° | 8 | 17 | Quarzglas | M85X1 | Nein | |
| SH-355-175-254-8 | 254 | 175×175 | ±25° | 8 | 21 | Quarzglas | M85X1 | Nein | |
| SH-355-200-290-10 | 290 | 200×200 | ±25° | 10 | 19 | Quarzglas | M85X1 | Nein | |
| SH-355-220-330-8 | 330 | 220×220 | ±25° | 8 | 27 | Quarzglas | M85X1 | Nein | |
| SH-355-300-420-8 | 420 | 300×300 | ±28° | 8 | 34 | Quarzglas | M85X1 | Nein | |
| SH-355-360-510-8 | 510 | 360×360 | ±25° | 8 | 42 | Quarzglas | M85X1 | Nein | |
| SH-355-400-650-8 | 650 | 400×400 | ±28° | 8 | 53 | Quarzglas | M85X1 | Nein | |
| SH-355-550-750-8 | 750 | 550×550 | ±28° | 8 | 61 | Quarzglas | M85X1 | Nein |
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Gewinde | Telezentrisch | Datenblatt |
|---|---|---|---|---|---|---|---|---|---|
| SH-532-50-63-12 | 63 | 50×50 | ± 28° | 12 | 5.1 | BK7 | M85X1 | Nein | |
| SHT-532-65-100-12 | 100 | 65×65 | ± 28° | 12 | 8.1 | Quarzglas | M85X1 | Ja | |
| SH-532-70-100-12 | 100 | 70×70 | ± 28° | 12 | 8.1 | BK7 | M85X1 | Nein | |
| SHT-532-65-110-8 | 110 | 65×65 | ± 25° | 8 | 15 | Quarzglas | M85X1 | Ja | |
| SH-532-110-160-12 | 160 | 110×110 | ± 28° | 12 | 13 | BK7 | M85X1 | Nein | |
| SH-532-145-210-12 | 210 | 145×145 | ± 28° | 12 | 17 | BK7 | M85X1 | Nein | |
| SH-532-175-254-12 | 254 | 175×175 | ± 28° | 12 | 21 | BK7 | M85X1 | Nein | |
| SH-532-230-330-12 | 330 | 230×230 | ± 28° | 12 | 27 | BK7 | M85X1 | Nein | |
| SH-532-300-420-12 | 420 | 300×300 | ± 28° | 12 | 35 | BK7 | M85X1 | Nein | |
| SH-532-350-500-12 | 500 | 350×350 | ± 28° | 12 | 41 | BK7 | M85X1 | Nein |
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Gewinde | Telezentrisch | Datenblatt |
|---|---|---|---|---|---|---|---|---|---|
| SH-980-70-100-20-2Q | 100 | 70×70 | ± 28° | 20 | 11 | BK7+FS | M85X1 | Nein | |
| SHT-980-100-160-12-2Q | 160 | 100×100 | ± 25° | 12 | 25 | BK7+FS | M85X1 | Ja | |
| JGT-980-150-254-10-FS | 254 | 150×150 | ± 25° | 10 | 49.8 | Quarzglas | M85x1 | Ja | |
| SH-980-160-254-20-FS | 254 | 160×160 | ± 28° | 20 | 25 | Quarzglas | M85X1 | Nein | |
| SH-980-220-330-20-2Q | 330 | 220×220 | ± 28° | 20 | 33 | BK7-FS | M85X1 | Nein | |
| SH-980-220-330-20-FS | 330 | 220×220 | ± 28° | 20 | 33 | Quarzglas | M85X1 | Nein | |
| SH102-915-255-420-30 | 420 | 255×255 | ± 25° | 30 | 24 | Quarzglas | M102x1 | Nein | |
| SH-980-280-420-20-FS | 420 | 280×280 | ± 28° | 20 | 41 | Quarzglas | M85x1 | Nein | |
| SH112-915-415-670-30-FS | 670 | 415×415 | ± 25° | 30 | 51 | Quarzglas | M112x1 | Nein | |
| SH-980-450-650-20-2Q | 650 | 450×450 | ± 28° | 20 | 58 | BK7+FS | M85x1 | Nein | |
| SH-980-450-650-20-FS | 650 | 450×450 | ± 28° | 20 | 58 | Quarzglas | M85x1 | Nein |
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Gewinde | Telezentrisch | Datenblatt |
|---|---|---|---|---|---|---|---|---|---|
| SH39-1064-23-40-8 | 40 | 23×23 | ± 25° | 8 | 10 | BK7 | M39X1 | Nein | |
| SH39-1064-22-50-8 | 50 | 22×22 | ± 18° | 8 | 13 | BK7 | M39X1 | Nein | |
| SH-1064-50-63-12 | 63 | 50×50 | ± 25° | 12 | 11 | BK7 | M85X1 | Nein | |
| SH39-1064-56-80-8 | 80 | 56×56 | ± 27° | 8 | 20 | BK7 | M39X1 | Nein | |
| SH-1064-70-100-12 | 100 | 70×70 | ± 28° | 12 | 17 | BK7 | M85X1 | Nein | |
| SH39-1064-68-100-8 | 100 | 68×68 | ± 27° | 8 | 25 | BK7 | M39X1 | Nein | |
| SHT-1064-65-100-12-FS | 100 | 65×65 | ± 28° | 12 | 17 | Quarzglas | M85X1 | Ja | |
| SH-1064-70-100-20 | 100 | 70×70 | ± 28° | 20 | 10 | BK7 | M85X1 | Nein | |
| SH79-1064-70-100-20 | 100 | 70×70 | ± 28° | 20 | 10 | BK7 | M79X1 | Nein | |
| SHT-1064-55-125-16-FS | 125 | 55×55 | ± 25° | 16 | 15 | Quarzglas | M85X1 | Ja | |
| SH-1064-110-160-12 | 160 | 110×110 | ± 28° | 12 | 26 | BK7 | M85X1 | Nein | |
| SH39-1064-105-160-8 | 160 | 105×105 | ± 27° | 8 | 39 | BK7 | M39X1 | Nein | |
| SHT-1064-100-160-12-FS | 160 | 100×100 | ± 28° | 12 | 26 | Quarzglas | M85X1 | Ja | |
| SH-1064-110-160-20 | 160 | 110×110 | ± 28° | 20 | 16 | BK7 | M85X1 | Nein | |
| SH79-1064-110-160-20 | 160 | 110×110 | ± 28° | 20 | 16 | BK7 | M79X1 | Nein | |
| SH-1064-110-170-20-FS | 170 | 110×110 | ± 28° | 20 | 17 | Quarzglas | M85X1 | Nein | |
| SH-1064-100-170-30-FS | 170 | 100×100 | ± 25° | 30 | 11 | Quarzglas | M95X1, M102X1 | Nein | |
| SH-1064-145-210-12 | 210 | 145×145 | ± 28° | 12 | 34 | BK7 | M85X1 | Nein | |
| SH-1064-150-210-20 | 210 | 150×150 | ± 28° | 20 | 21 | BK7 | M85X1 | Nein | |
| SH79-1064-150-210-20 | 210 | 150×150 | ± 28° | 20 | 21 | BK7 | M79X1 | Nein | |
| SH-1064-150-210-20-FS | 210 | 150×150 | ± 28° | 20 | 21 | Quarzglas | M85X1 | Nein | |
| SH-1064-150-225-12 | 225 | 150×150 | ± 28° | 12 | 37 | BK7 | M85X1 | Nein | |
| SH-1064-175-254-12 | 254 | 175×175 | ± 28° | 12 | 41 | BK7 | M85X1 | Nein | |
| SH-1064-175-254-12-FS | 254 | 175×175 | ± 25° | 12 | 44 | Quarzglas | M85X1 | Nein | |
| SH-1064-175-254-20 | 254 | 175×175 | ± 28° | 20 | 25 | BK7 | M85X1 | Nein | |
| SH79-1064-175-254-20 | 254 | 175×175 | ± 28° | 20 | 25 | BK7 | M79X1 | Nein | |
| SH-1064-175-254-20-FS | 254 | 175×175 | ± 28° | 20 | 25 | Quarzglas | M85X1 | Nein | |
| SH-1064-175-254-30-FS | 254 | 175×175 | ± 25° | 30 | 17 | Quarzglas | M95X1, M102X1 | Nein | |
| SH39-1064-160-254-8 | 254 | 160×160 | ± 27° | 8 | 62 | BK7 | M39X1 | Nein | |
| SH-1064-200-290-12 | 290 | 200×200 | ± 28° | 12 | 47 | BK7 | M85X1 | Nein | |
| SH-1064-200-290-12-FS | 290 | 200×200 | ± 28° | 12 | 47 | Quarzglas | M85X1 | Nein | |
| SH-1064-230-330-12 | 330 | 230×230 | ± 28° | 12 | 54 | BK7 | M85X1 | Nein | |
| SH-1064-220-330-20 | 330 | 220×220 | ± 28° | 20 | 33 | BK7 | M85X1 | Nein | |
| SH79-1064-220-330-20 | 330 | 220×220 | ± 28° | 20 | 33 | BK7 | M79X1 | Nein | |
| SH-1064-220-330-20-FS | 330 | 220×220 | ± 28° | 20 | 33 | Quarzglas | M85X1 | Nein | |
| SH-1064-200-330-30-FS | 330 | 200×200 | ± 25° | 30 | 22 | Quarzglas | M95X1, M102X1 | Nein | |
| SH-1064-240-350-20 | 350 | 240×240 | ± 28° | 20 | 34 | BK7 | M85X1 | Nein | |
| SH79-1064-240-350-20 | 350 | 240×240 | ± 28° | 20 | 34 | BK7 | M79X1 | Nein | |
| SH-1064-250-380-12 | 380 | 250×250 | ± 28° | 12 | 62 | BK7 | M85X1 | Nein | |
| SH-1064-300-420-12 | 420 | 300×300 | ± 28° | 12 | 69 | BK7 | M85X1 | Nein | |
| SH-1064-300-420-20 | 420 | 300×300 | ± 28° | 20 | 41 | BK7 | M85X1 | Nein | |
| SH79-1064-300-420-20 | 420 | 300×300 | ± 28° | 20 | 41 | BK7 | M79X1 | Nein | |
| SH-1064-300-420-20-FS | 420 | 300×300 | ± 28° | 20 | 41 | Quarzglas | M85X1 | Nein | |
| SH-1064-255-420-30-FS | 420 | 255×255 | ± 25° | 30 | 28 | Quarzglas | M95X1, M102X1 | Nein | |
| SH-1064-360-500-20 | 500 | 360×360 | ± 28° | 20 | 49 | BK7 | M85X1 | Nein | |
| SH79-1064-360-500-20 | 500 | 360×360 | ± 28° | 20 | 49 | BK7 | M79X1 | Nein | |
| SH-1064-360-500-20-FS | 500 | 360×360 | ± 28° | 20 | 49 | Quarzglas | M85X1 | Nein | |
| SH-1064-400-580-20 | 580 | 400×400 | ± 28° | 20 | 57 | BK7 | M85X1 | Nein | |
| SH79-1064-400-580-20 | 580 | 400×400 | ± 28° | 20 | 57 | BK7 | M79X1 | Nein | |
| SH-1064-450-650-20 | 650 | 450×450 | ± 28° | 20 | 64 | BK7 | M85X1 | Nein | |
| SH79-1064-450-650-20 | 650 | 450×450 | ± 28° | 20 | 57 | BK7 | M85X1 | Nein | |
| SH-1064-450-650-20-FS | 650 | 450×450 | ± 25° | 20 | 64 | Quarzglas | M85X1 | Nein | |
| SH-1064-560-800-15 | 800 | 560×560 | ± 28° | 20 | 104 | BK7 | M85X1 | Nein | |
| SH79-1064-560-800-20 | 800 | 560×560 | ± 28° | 20 | 78 | BK7 | M79X1 | Nein | |
| SH-1064-600-900-20 | 900 | 600×600 | ± 28° | 20 | 88 | BK7 | M85X1 | Nein | |
| SH79-1064-600-900-20 | 900 | 600×600 | ± 28° | 20 | 88 | BK7 | M79X1 | Nein | |
| SH-1064-600-900-20-FS | 900 | 600×600 | ± 25° | 20 | 88 | Quarzglas | M85X1 | Nein |
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Gewinde | Telezentrisch | Datenblatt |
|---|---|---|---|---|---|---|---|---|---|
| SH-10,6-46-50-75-15 | 75 | 50×50 | ± 25° | 15 | 97 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-70-100-14 | 100 | 70×70 | ± 28° | 14 | 146 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-110-160-14 | 160 | 110×110 | ± 28° | 14 | 220 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-150-210-14 | 210 | 150×150 | ± 28° | 14 | 306 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-175-254-14 | 254 | 175×175 | ± 28° | 14 | 370 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-200-300-14 | 300 | 200×200 | ± 28° | 14 | 437 | ZnSe | M85X1 | Nein | |
| SH-10,6-48-300-420-14 | 420 | 300×300 | ± 28° | 14 | 622 | ZnSe | M85X1 | Nein |
| Produkt | Brennweite (mm) | Markierfeld (mm) | Ablenkwinkel | Eingangsapertur (mm) | Fokus (µm) | Material | Datenblatt |
|---|---|---|---|---|---|---|---|
| SH-CL-1064-100-160-10-FS | 160 | 100 | ± 27° | 10 | 31 | Quarzglas | |
| SH-CL-1064-140-210-10-FS | 210 | 140 | ± 27° | 10 | 41 | Quarzglas | |
| SH-CL-1064-180-254-10-FS | 254 | 180 | ± 27° | 10 | 50 | Quarzglas | |
| SH-CL-1064-300-420-10-FS | 420 | 300 | ± 27° | 10 | 51 | Quarzglas | |
| SH-CL-1064-70-100-20-FS | 100 | 70 | ± 28° | 20 | 16 | Quarzglas | |
| SH-CL-1064-140-160-20-FS | 160 | 140 | ± 28° | 20 | 26 | Quarzglas | |
| SH-CL-1064-200-210-20-FS | 210 | 200 | ± 28° | 20 | 30 | Quarzglas | |
| SH-CL-1064-250-254-20-FS | 254 | 250 | ± 28° | 20 | 35 | Quarzglas |
F-Theta-Objektive sind so konstruiert, dass sie ein Schreibfeld erzeugen, das linear vom Einfallswinkel abhängt. So flachen F-Theta-Linsen die Brennebene ab. Telezentrische Linsen flachen die Brennebene weiter ab und der Strahlenwinkel ist für alle Spotpositionen näher an 90°.
Bei Innotech Laser erhalten Sie hochwertige Laseroptiken mit einem hervorragenden Preis-Leistungs-Verhältnis.
